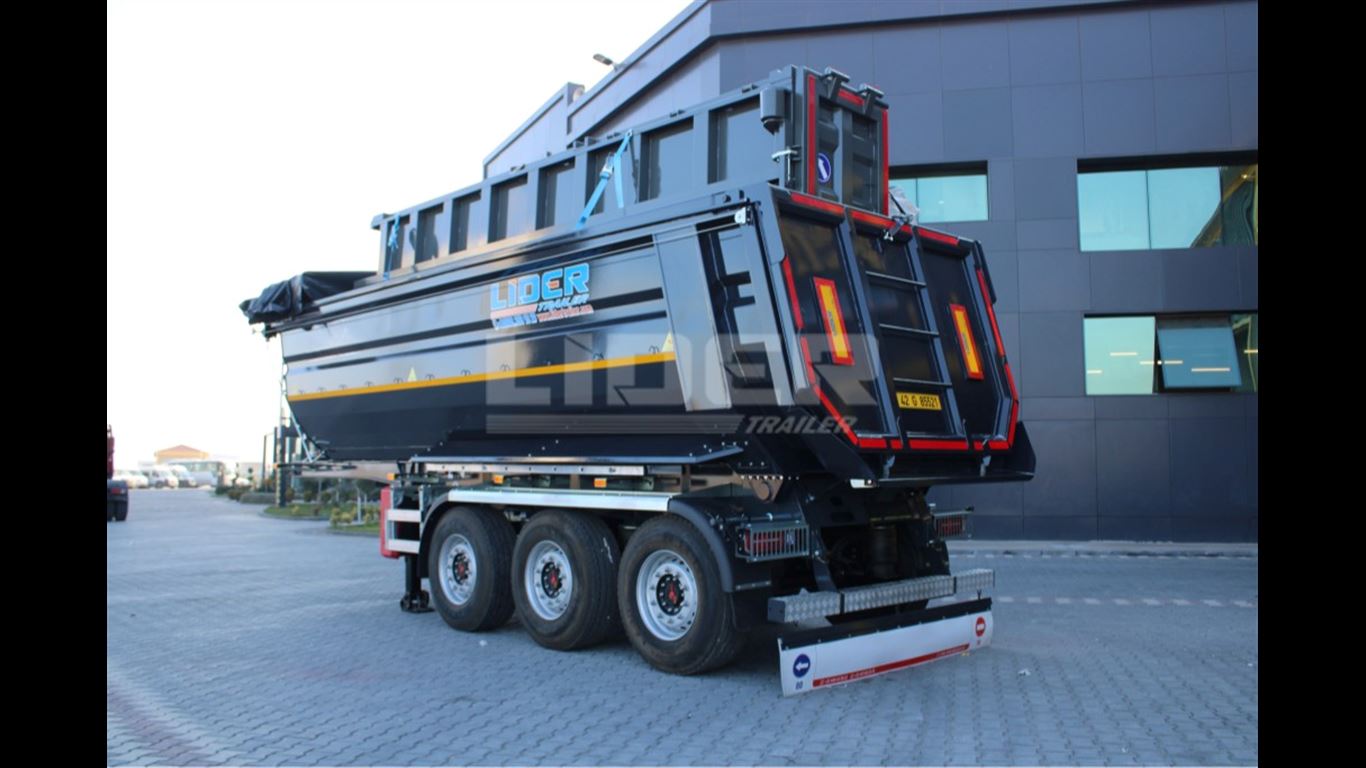

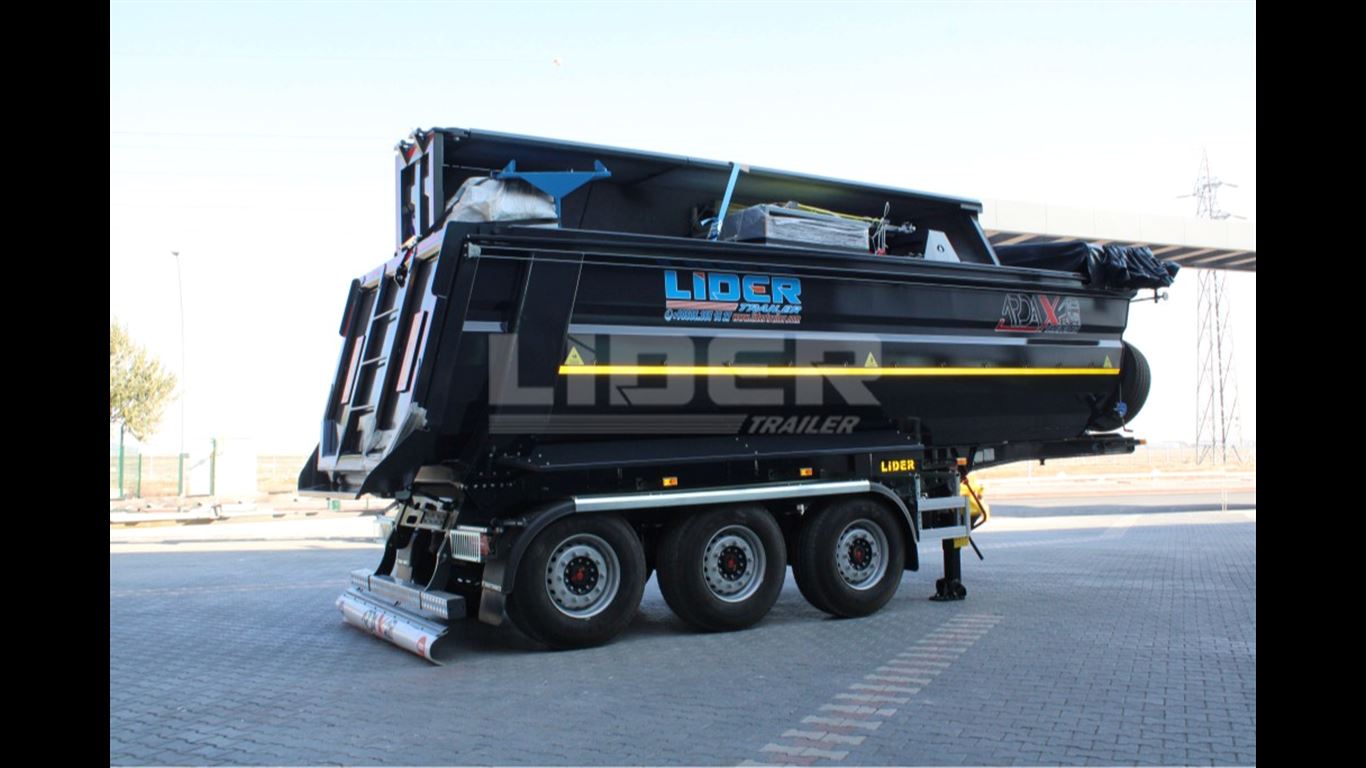

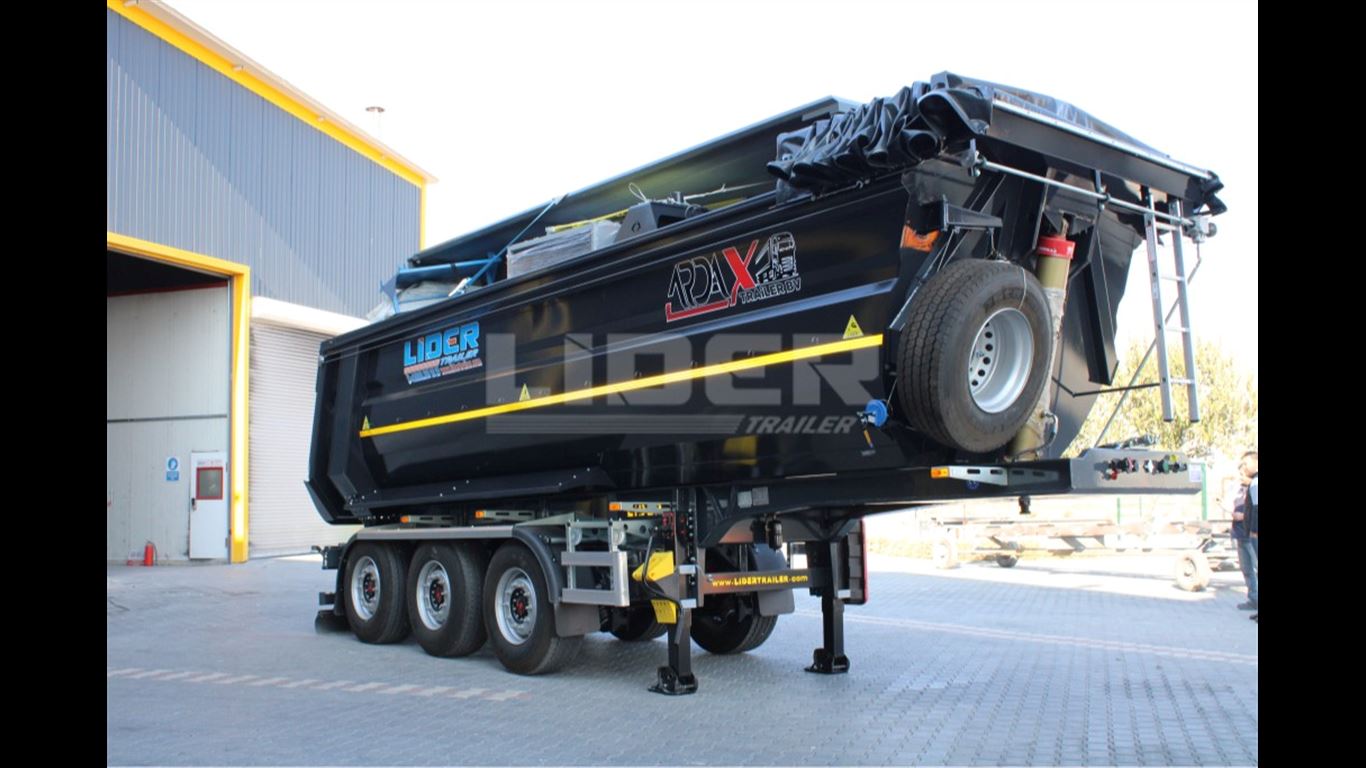

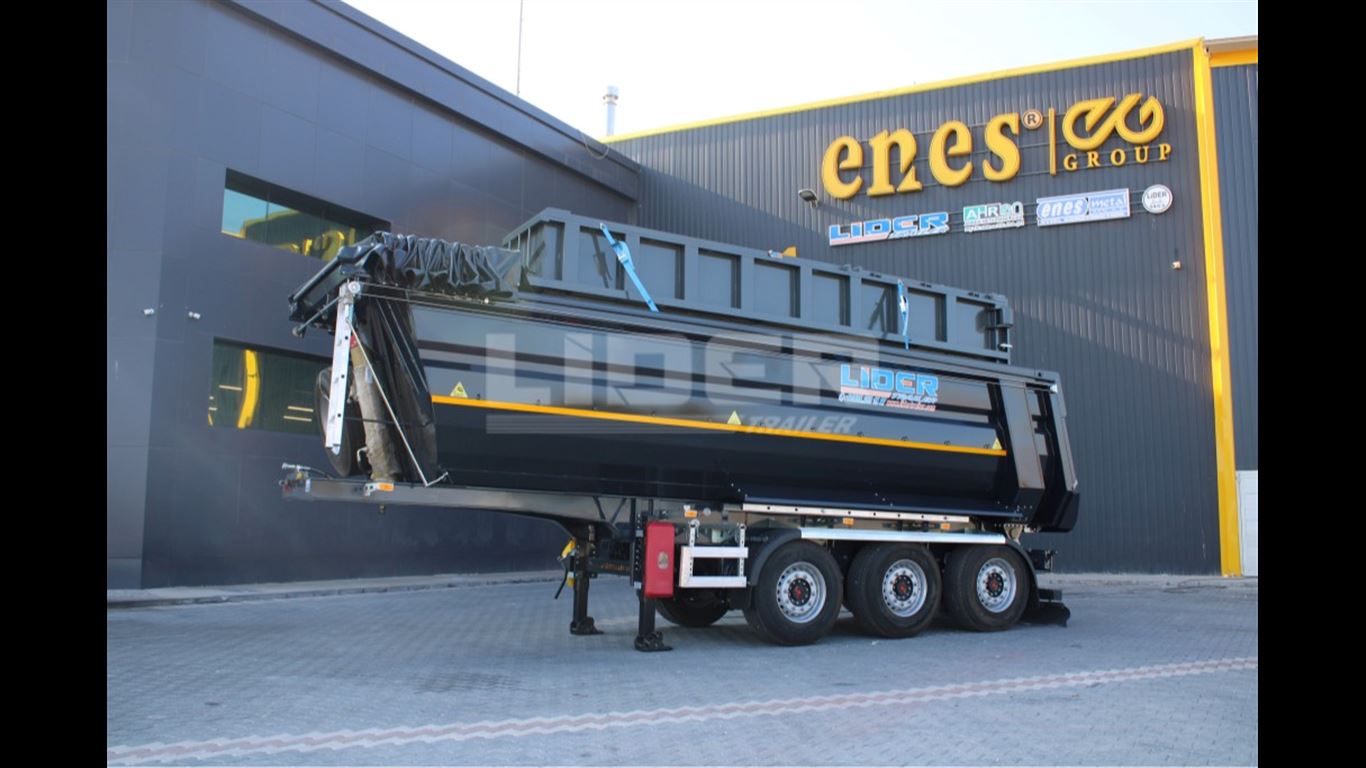

.The 3 axle dumper trailer is designed for the safe and efficient transportation and unloading of heavy loads.
LIDER Trailer dumper trailer models are developed for demanding working conditions, combining a durable structure with high-performance hydraulic systems to meet the transportation requirements of different industries.
The trailers can be manufactured in different capacities and dimensions and can be customized according to customer requirements. Different steel options, high-capacity cylinder systems, reliable axle systems and braking systems are available.
The dumper body can be manufactured using different steel options such as Hardox 450 and Domex ST 52. Heavy-duty telescopic cylinders are available with 5-stroke and 6-stroke options.
The products can be manufactured in different configurations according to the customer's intended application and technical requirements.
Production in different capacities and dimensions
Different steel types: Hardox 450 - Domex ST 52
High-capacity cylinder systems
Customized design according to customer requirements
Heavy-duty telescopic cylinders
5-stroke and 6-stroke options
Different disc or drum-type axle options
• Axles: 3 × 12-16 Ton / 4 × 12-16 Ton
• Tyres: 385/65 R 22.5 (Single) / 12 R 22.5 (Twin)
• Air Suspension: 35-55 Ton capacity
• Mechanical Suspension: 50-80 Ton capacity
• Tare Weight ±3%: 6,800-11,000 kg
• Overall Length: 8,732-12,000 mm
• Overall Width: 2,500 mm
• Height: 3,213-3,600 mm
• Volume: 24-55 m³
• EBS Brake System
• ABS Brake System
• Colours: RAL codes according to customer requirements
