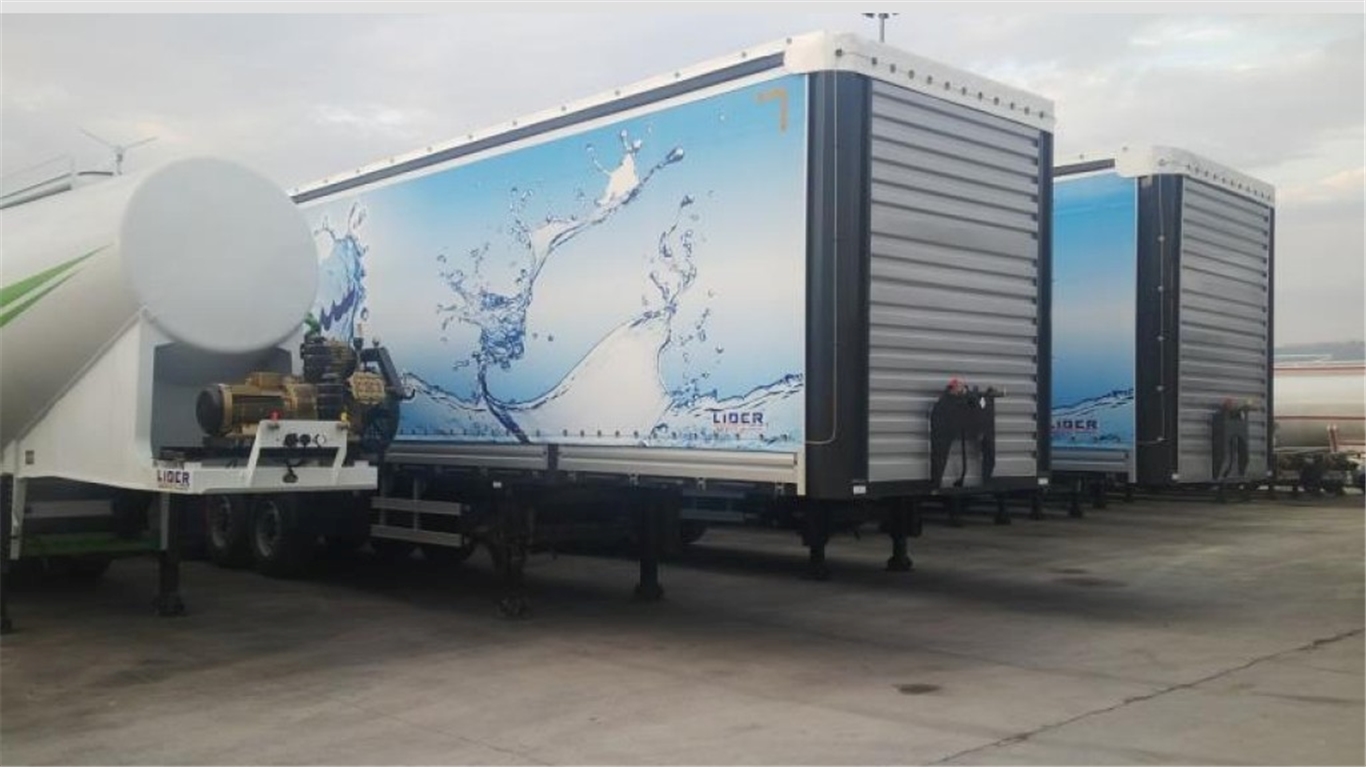

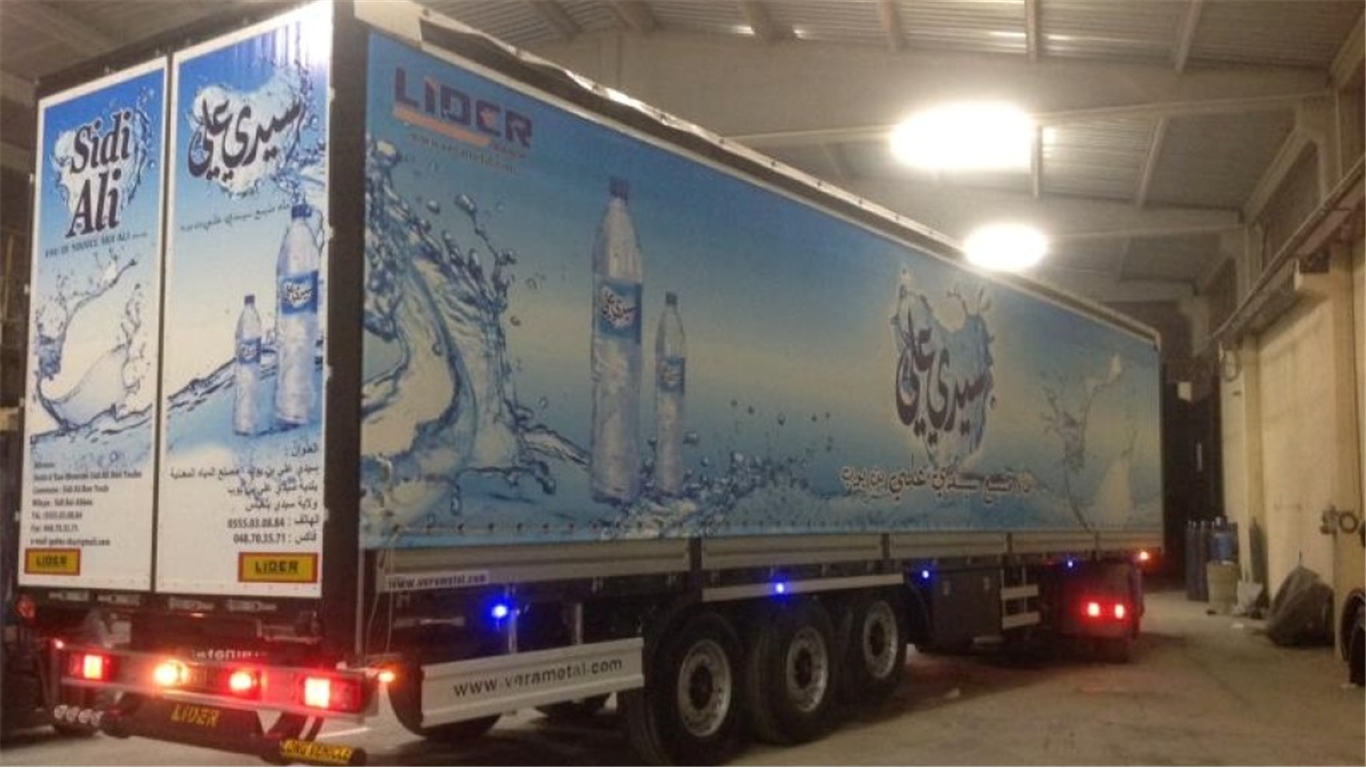

The Lider Trailer Curtain-Sider Trailer is a versatile transportation solution designed for the safe, practical, and efficient transportation of cargo with different dimensions and characteristics. Its side and top curtain system protects the cargo from external conditions while providing easy access during loading and unloading operations.

Curtain-sider trailers are widely used for transporting palletized goods, packaged products, textile products, automotive parts, machinery and equipment, as well as various commercial cargo. The curtain system can be opened and closed easily, providing flexibility for different loading methods and logistics operations.

Depending on the characteristics of the cargo and the intended application, the Curtain-Sider Trailer can be manufactured with different length, height, axle configuration, and technical equipment options. It provides a reliable, durable, and functional solution for road transportation and can be customized according to specific transportation requirements.

**3-Axle Curtain-Sider Trailer – Technical Specifications:**

**Chassis:**
Manufactured from ST 52 special steel, sheets, and flat bars. The box chassis is assembled and produced using robotic welding machines.

**King Pin:**
Manufactured from forged 42 Cr Mo4 steel, mounted with 8 bolts and 2" diameter according to SAE standards.

**Axles:**
3 × 12,000 kg load-capacity drum axle group with sealed bearing system.

**Brake System:**
Dual-circuit pneumatic brake system with load-sensitive regulator brake valve (WABCO).
WABCO EBS brake system.
Generally equipped with ABS or EBS and a dual-line brake system.

**Air Suspension:**
Air suspension system.
300 mm air bellows with adjustable level valve.
Parabolic springs and shock absorber elements limiting excessive axle movement for protection purposes.
Front and middle axle lifting, controlled from inside the cabin.
Loading and unloading ramp adjustment.

**Landing Legs:**
Twin-speed telescopic mechanical landing legs with a load capacity of 24,000 kg.

**Rear Bumper:**
Rear bumper compliant with the 70/221/AT version.

**Wheel Chock:**
1 parking wheel chock supplied with the carrier.

**Tyres and Rims:**
6 PIRELLI-LASSA 385/65 R 22.5 tubeless tyres with 11.75–22.5 pilot rims.

**Mudguards:**
6 complete plastic mudguards.

**Painting:**
The material is cleaned and grit-blasted before phosphate treatment. It is then coated with 2 layers of epoxy primer and finished with 2 layers of acrylic paint in the requested colour.

**Electrical Equipment and Lighting:**
3 amber-coloured side lights.
Rear parking lights, license plate light, and triangular reflectors.
2 × 7-pin electrical sockets.

**Accessories:**
Length: 9,000 mm
Width: 3,000 mm
Floor Steel: 6 mm patterned sheet
Floor Accessories: 8 mm cross members

The specifications above are standard and may be modified according to customer requirements.
