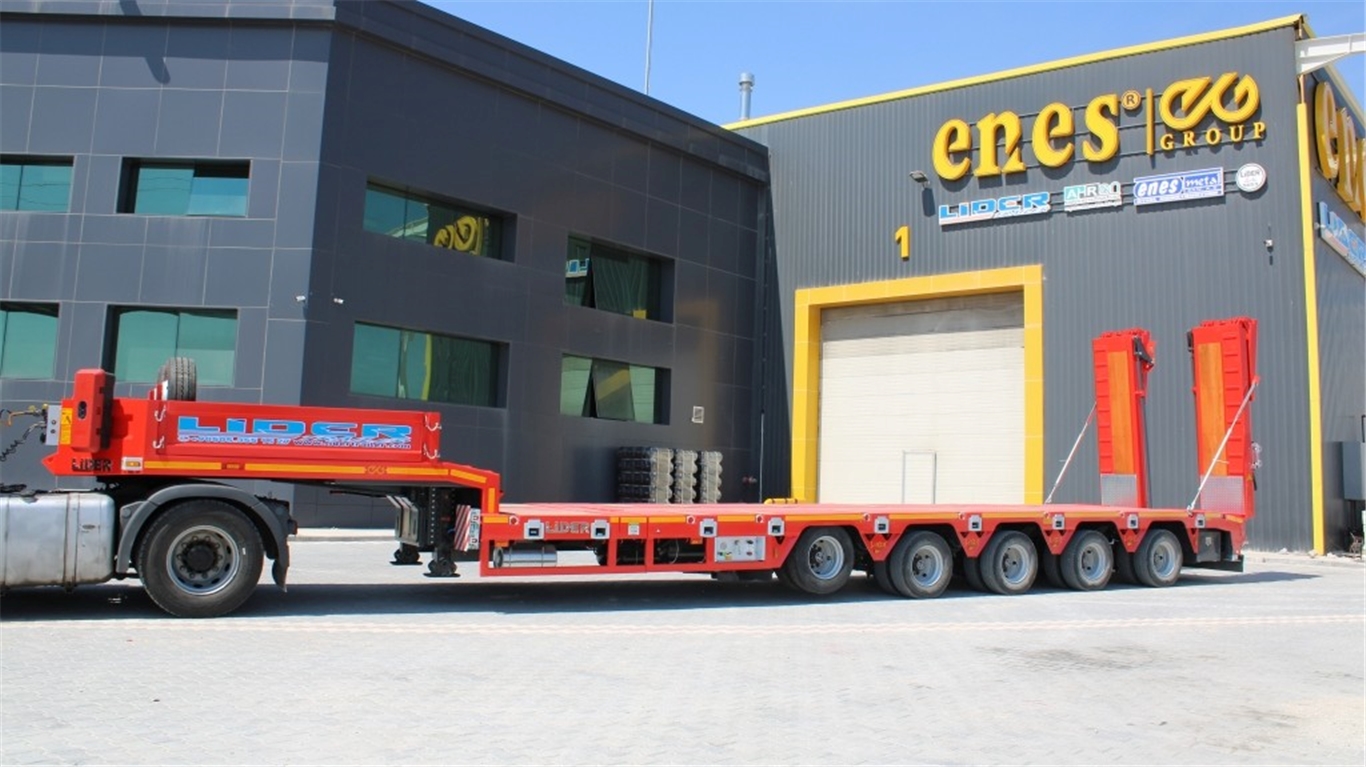

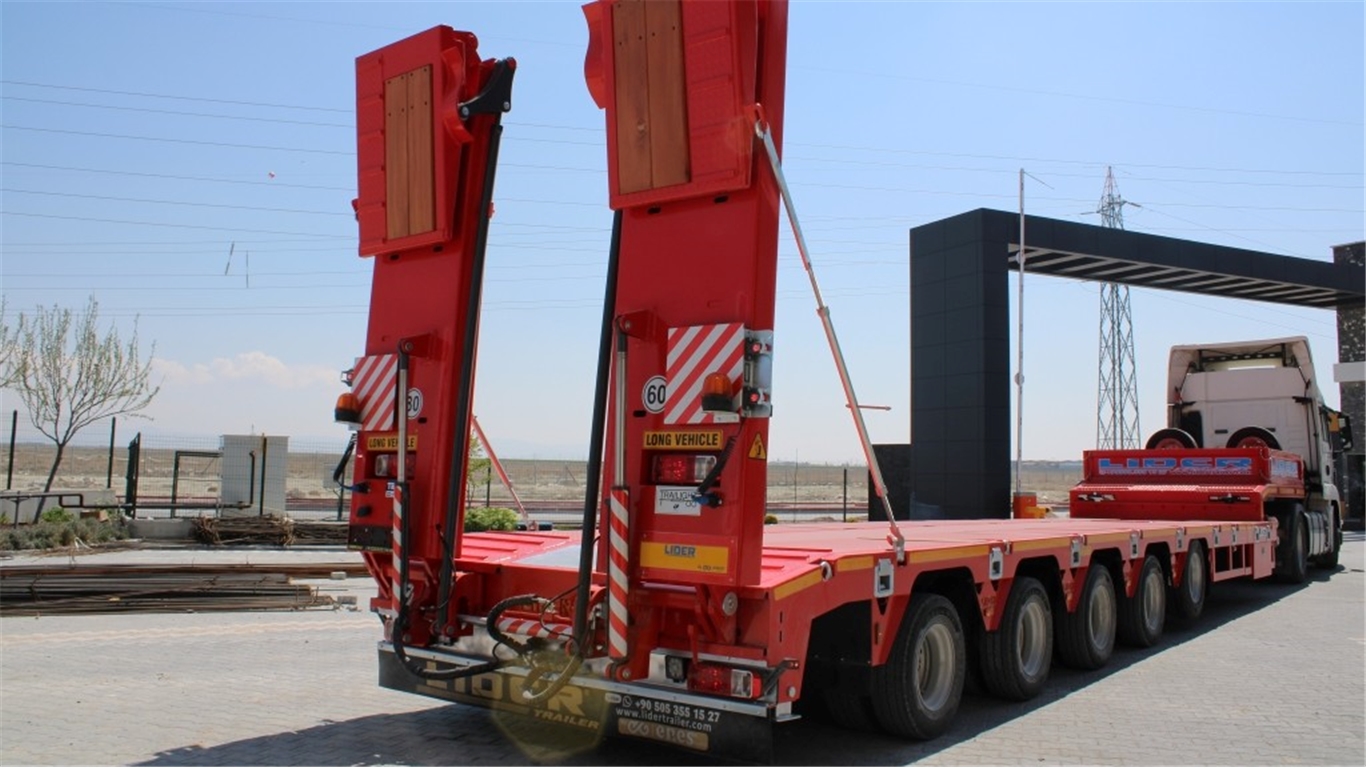

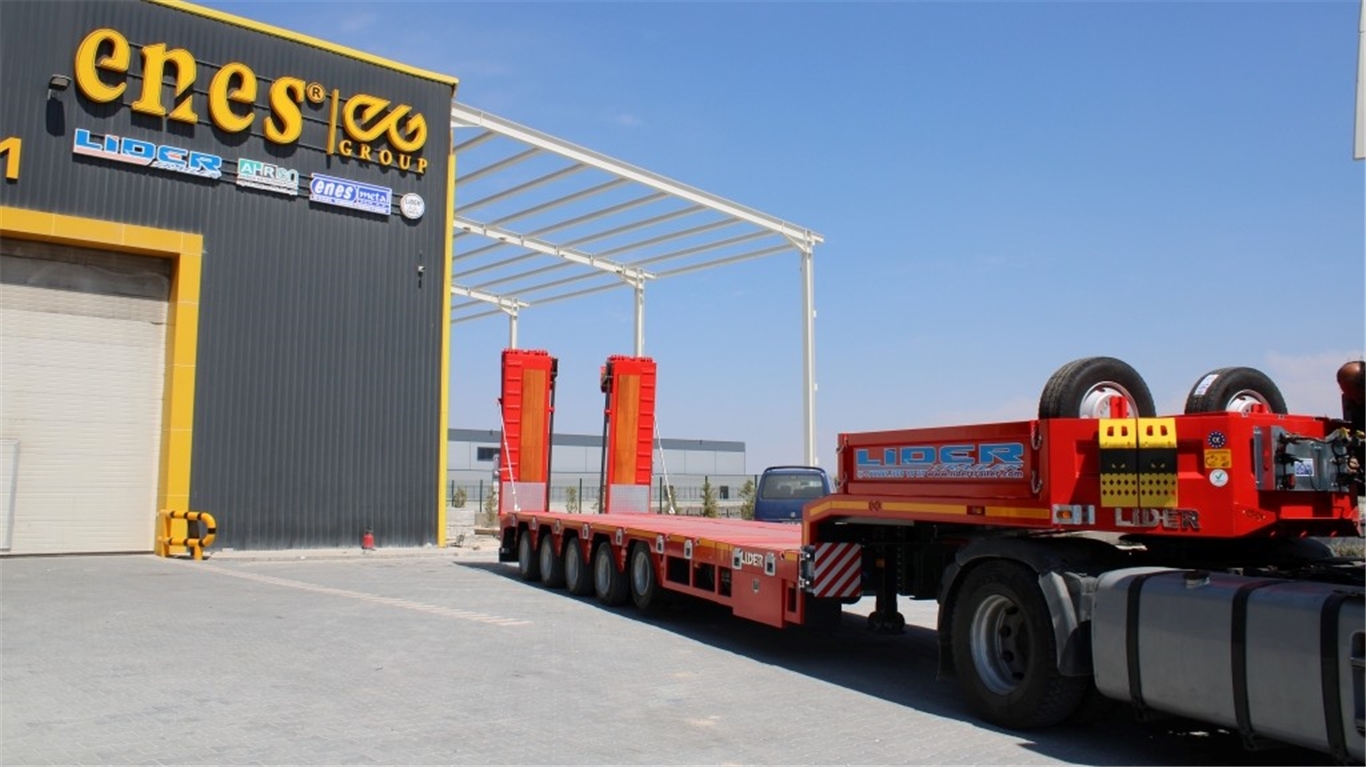

The 5-6 Axle Lowbed Trailer is a specialized transport solution developed for the safe and efficient transportation of heavy and oversized loads with different dimensions, types and weights. Its low-platform design provides a suitable structure for transporting construction machinery, heavy equipment and various oversized loads.

With its strong chassis construction, high load capacity and different axle options, it provides a durable and functional solution for heavy-duty transportation. Hydraulic and mechanical equipment options can be configured according to the intended application and customer requirements.

The 5-6 Axle Lowbed Trailer is particularly designed for transporting heavy machinery and oversized equipment in long-distance or specialized transportation operations.

Key Features:
• 5-6 axle lowbed trailer configuration
• Low platform suitable for heavy and oversized loads
• Strong and high-strength chassis construction
• Design compatible with different axle configurations
• EBS brake system
• Mechanical landing legs with a load capacity of 24,000 kg
• Technical equipment customizable according to different load and operational requirements

5-6 Axle Lowbed Trailer Technical Specifications:

Chassis:
High-strength chassis manufactured from ST52 material using gas metal arc welding.

King Pin:
Manufactured from forged 42 CrMo4 steel, with a 2" diameter and mounted with 8 bolts in accordance with SAE standards.

Axles:
5 x 14,000 kg load-capacity drum axle group. Equipped with a sealed bearing system.

Brake System:
Dual-circuit pneumatic brake system with a load-sensitive brake valve regulator (WABCO).
EBS brake system (WABCO).
Automatic brake adjustment lever.
30-size service bellows on the front axle.
30x30 emergency service bellows on the rear axles.

Landing Legs:
Double-speed mechanical landing legs with a load capacity of 24,000 kg.

Rear Bumper:
Rear bumper compliant with the 70/221/AT version.

Wheel Chock:
1 parking wheel chock supplied with the carrier equipment.

Tyres and Rims:
20 PIRELLI-LASSA 235/75 R 17.5 tubeless tyres.
11.75–22.5 Pilot rims.

Paint:
After cleaning the material and grit blasting with metallic abrasive material, phosphate coating is applied. Then, 2 layers of epoxy primer and 2 layers of acrylic paint in the requested colour are applied as the final coating.

Electrical Equipment and Lighting:
3 amber-coloured side lamps.
Rear parking lamps, license plate lamp and triangular reflector.
2 x 7-pin electrical sockets.

Dimensions and Weight:
Bed Length: 13.60 mm
Overall Length: 1,900 mm
Width: 2,550–3,000 mm
Floor Steel: 6 mm patterned sheet
Floor Accessories: 8 mm cross members

The above specifications are standard and can be modified according to customer requirements.
